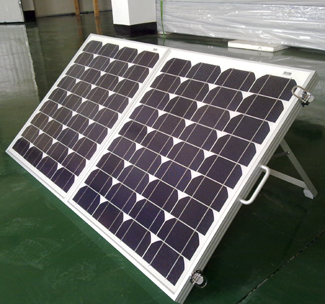

140W Portable Solar Module Folding, 140Watt Solar Module Kit

140W Portable Solar Panel  Folding is excellent choice for powering up electronic devices through solar energy in the remote area or on the road. It has already been effectively tested for powering up handheld radios, trickle charging, GPS devices, IPOD, power rechargeable flashlights, cell Phone, MP3, running Bilge pumps, Fish finders, lanterns, CB radios, Satellite phones, small color Television, Portable XM satellite Radio and Portable games.

Most of the Folding Solar Panel, Flexible Solar panel models are light weight and quite flexible. The new Folding solar panels are said to be build with weather proof durable technology. Not only are these flexible solar panels rugged but also very compact and lightweight. All these miniature Folding Solar panels can fit on the backpack at least the compact models and some of the model can fold down to very small size that can fit into small area. Few models have Built-in grommets that allows for mounting or hanging.
It’s application can be increased manifold by hooking up with power pack, on 100 watt inverter and high output battery that is charged by the folding solar panels, generates usable AC power supply, which can be used for powering many electronic devices like laptop or any other devices that can be easily plugged into built in socket or use power pack USB charge port to charge IPOD or Cell Phone.

Specification:



Model type YKT-140W
Mono or Poly Mono-Crystalline
Peak power(Pmax) 140W
Weight 16.2kg
Dimension 830×540×30mm
Maximum power voltage (Vmp) 17.82V
Maximum power current (Imp) 3.93A
Open circuit voltage (Voc) 21.2V
Short circuit current (Isc) 4.34A
Module Efficiency 11.10%
Total Number of Cells (Pcs) 36
Tolerance (±) 2%
Maximum System Voltage 700VCD
Temp. Coeff. of Isc (TK Isc) 0.058 %/°C
Temp. Coeff. of Voc (TK Voc) -0.376 %/°C
Temp. Coeff. of Pmax (TK Pmax) -0.503%/°C
Normal Operating Cell Temperature 44.4±2%/°C
Frame (Material, Corners, etc.) Aluminum
Length of Cables (mm) 900mm
Temperature Range -40°C~+85°C
Surface Maximum Load Capacity 60m/s(200kg/sq.m)
Allowable Hail Load steel ball fall down from 1m height
Standard Test Conditions AM1.5 1000W/m2 25°C



-
