XLPE insulated electric cable
1. Application:
The cable is used in electric transmission and distribution system operating at rated voltage of 0.6/1, 1.8/3, 3.6/6, 6/10, 8.7/10, 8.7/15, 12/20, 21/35, 26/35 kV.
2. Standard: IEC60502 or GB/T12706-2008
3. Model
YJV/YJLV: Cu or Al conductor, XLPE insulated, PVC sheathed electric cable
YJV22/YJLV22: Cu or Al conductor, XLPE insulated, steel tape armored, PVC sheathed electric cable
YJV32/YJLV32: Cu or Al conductor, XLPE insulated, steel wire armored, PVC sheathed electric cable

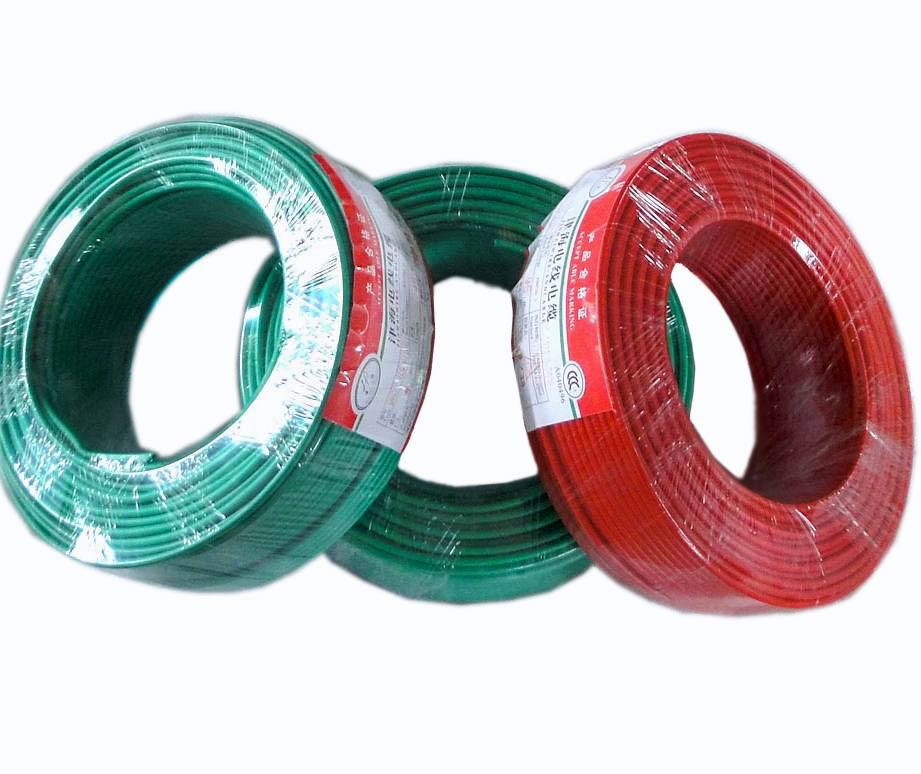

PVC insulation power wire
Description:
1. Rated voltage: 450/750V,0.6/1kV
2. Conductor: copper, aluminum
3. Operation temperature: 70 degree
4. Standard: ISO9001-2000, IEC, CCC

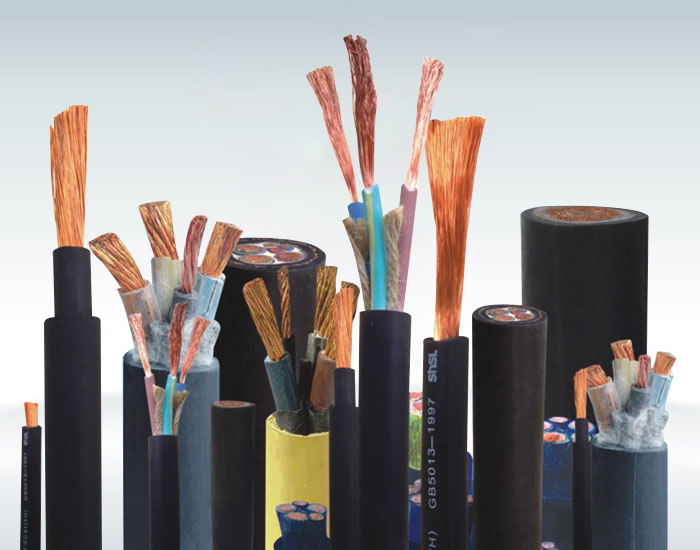

Control Cable
Conductor: Copper
Armor: SWA
Insulation: Fire Resistance PVC
Sheath: Fire Resistance PVC
Description:
|
Type |
Name |
Main applications |
|
KVV |
Copper conductor PVC insulated and sheathed control cable |
For laying indoors, in trenches and in ducts, for fixed installation |
|
KVVP |
Copper conductor PVC insulated and sheathed copper wire braiding screened control cable |
For laying indoors, in trenches and in ducts, for fixed installation |
|
KVVP2 |
Copper conductor PVC insulated and sheathed control cable with steel tape shield |
For laying indoors, in trenches and in ducts, for fixed installation |
|
KVV22 |
Copper conductor PVC insulated and sheathed control cable with steel tape armor |
For laying indoors, in trenches, in ducts and in ground, able to withstand heavier mechanical force, for fixed installation |
|
KVVR |
Copper conductor PVC insulated flexibe control cable |
For laying indoors, movable and flexible |
|
ZR-KVVRP |
Copper conductor PVC insulated and sheathed copper wire braiding screened flexibe control cable |
For laying indoors with capability of moving and screening |
|
ZR-KVV |
Copper conductor PVC insulated and sheathed flame retardant control cable |
For laying indoors, in trenches, in ducts, and for fixed installation, the cable should be flame retardant |
|
ZR-KVVP2 |
Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape shield |
For laying indoors, in trenches, in ducts, and for fixed installation, the cable should be flame retardant |
|
ZR-KVV2 |
Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape armor |
For laying indoors, in trenches, in ducts, and underground, the cable should be flame retardant and able to bear beavier extermal mechanical force, and for fixed installation |
|
ZR-KVVR |
Copper conductor PVC insulated and sheathed flame retardant flexible control cable |
For laying indoors, the cable should be flame-retardant flexible and movable |

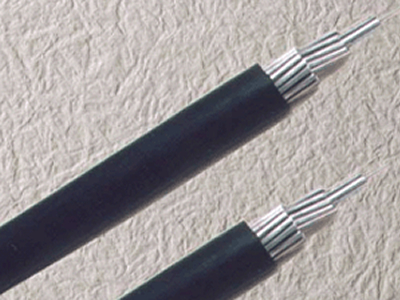

Aerial Bundle Cable
Description
Conductor: Al/Copper
Insulation: XLPE
Sheath: Fire Resistance PVC
Standard: IEC
Features:
1) Rated voltage: 1KV
2) Standard: JKTRYJ, JKLYJ, JKLGYJ, JKTRY, JKLY, JKLGY, JKLYJ/Q, JKLGYJ/Q
3) Specification range: core: 1 or 5
4) Cross section: 10 - 300mm2
5) Working temperature: 70°C (90°C is also available)
6) Application: fixed cabling
7) Soft copper cable is suitable for down lead of transformer
8) Consider the distance between cable and tree, it is allowed to contact
by tree frequently

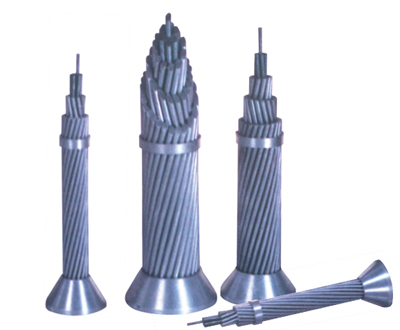

Aluminum Conductors
1. Application:
The product is used in the field of overhead power line
2. Standard: IEC61089, ASTM
3. Model:
ACSR, AACSR, AAAC, AAC, Cable aluminum coated steel (Type Alumoweld)
